Vehicle Wrap Design: Layout Tips and USDOT Marking Rules

What makes a good vehicle wrap design

A good vehicle wrap design tells people who you are and how to reach you while the vehicle is moving or parked across the street. That means a large logo, a short line about what you do, one way to contact you, strong contrast, and a layout planned around the vehicle’s real shape: doors, handles, windows and curves. If the vehicle is a commercial motor vehicle in interstate commerce, the design also has to leave room for the required company name and USDOT number markings.

This guide covers what to put on a wrap, the design rules that keep it readable, how to work with vehicle templates and print files, the federal marking rules for commercial vehicles, and a step-by-step process from measuring to installation. Pros Inc designs vehicle graphics and other branded materials for small businesses from our office in San Diego, and this is the checklist we use. Federal rules come from the Federal Motor Carrier Safety Administration (FMCSA) and the Electronic Code of Federal Regulations, checked as of October 2026, with links in each section. This is general information, not legal advice. Check the rules that apply to your vehicles and your state.

Full wraps, partial wraps and decals

Choose the coverage before you design, because it changes the layout and the budget.

• Full wrap: printed vinyl covers most or all of the painted surfaces. It gives you the most design freedom and also costs the most.
• Partial wrap: vinyl covers part of the vehicle, such as the rear half or the lower sides, and the paint color becomes part of the design. Pick a paint color that works with your brand colors.
• Cut vinyl lettering and decals: individual letters and logos are cut from colored vinyl. This is the simplest option for a logo, phone number and website, and it is often how required markings are added.

A partial wrap or a well-designed set of decals can be just as effective as a full wrap if the message is clear.

What to put on a vehicle wrap

People usually see a vehicle for a few seconds, often from a distance. Limit the content to what they can take in that quickly.

1. Your logo and business name, large enough to read from across a parking lot
2. What you do, in a few words, such as “Commercial HVAC repair” or “Custom cakes and catering”
3. One way to contact you, usually a website or phone number, and both only if there is room
4. Your service area, if you work locally
5. Any required markings, such as the company name and USDOT number for covered commercial vehicles

Leave out long lists of services, small photos and taglines that need explaining. Put that detail on your website, where people will go after they see the vehicle.

Design rules for a readable wrap

Make the logo and message big

The sides of a van or truck are the biggest panels you have. Use them for the logo and a short message, and keep the text large. Test readability by viewing a scaled mockup from across a room or printing the side view and standing back from it.

Use strong contrast

Light text on a dark background or dark text on a light background is easiest to read. Avoid busy photos or gradients behind words. Bright brand colors also help the vehicle stand out in traffic.

Design for the vehicle’s shape

Door gaps, handles, fuel doors, trim, rivets and deep curves can cut through text and faces. Keep the important elements on flat areas, and never put a phone number or the first letter of a word across a door seam.

Plan each view

Design the driver side, passenger side, back, front and roof as separate views. The back is seen most in traffic, so it is the best place for your website or phone number. Remember that the two sides face opposite directions, so a logo or arrow may need to be flipped or rearranged so it does not read backward.

Be careful with windows

Rear and side windows are often covered with perforated window film that lets the driver see out. Window film rules vary by state and by window, so ask your installer what is allowed for your vehicle and where you drive.

Keep it consistent with your brand

Use the same logo files, colors and typefaces as your website, storefront and printed materials. A brand style guide records those rules, and our guide to logo file formats explains why your wrap designer will ask for a vector logo. Your vehicle is a moving sign, so the same principles as our guide to business signage design apply: short messages, readable lettering and strong contrast.

Federal marking rules for commercial vehicles

If your business operates commercial motor vehicles, the wrap has to work with the federal marking rules. According to FMCSA’s USDOT number guidance, you need a USDOT number if you operate in interstate commerce with a vehicle that:

• has a gross vehicle weight rating or gross combination weight rating, or gross vehicle or combination weight, of 10,001 pounds or more, whichever is greater
• is designed or used to transport more than 8 passengers, including the driver, for compensation
• is designed or used to transport more than 15 passengers, including the driver

A USDOT number is also required for intrastate carriers hauling hazardous materials in types and quantities that need a safety permit. FMCSA also lists many states, including California, that require a USDOT number for some intrastate commercial vehicles.

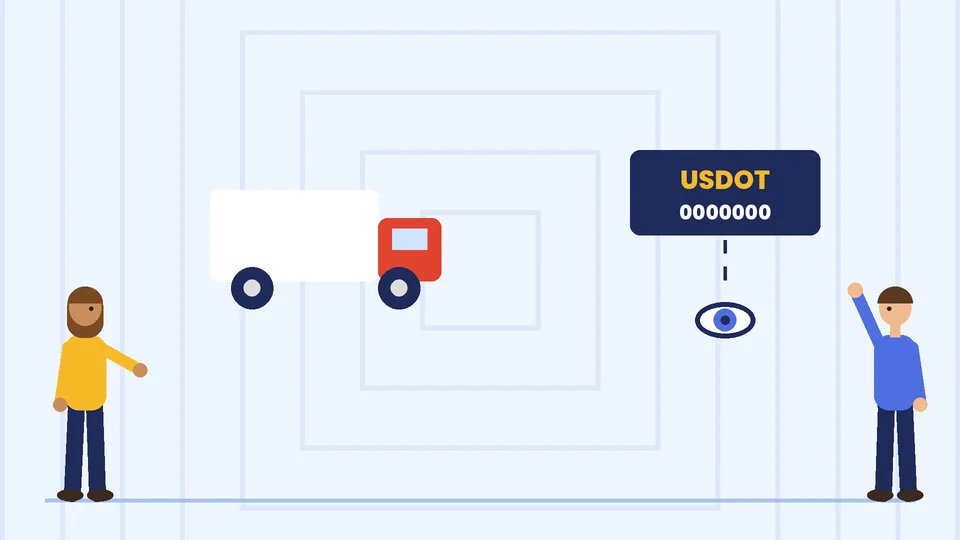

The marking rule in 49 CFR 390.21T says covered vehicles must display:

• the legal name or a single trade name of the motor carrier, as listed on its registration
• the FMCSA identification number, preceded by the letters “USDOT”

The marking must appear on both sides of the vehicle, in letters that contrast sharply with the background, and be readable in daylight from 50 feet away while the vehicle is stopped. If another company’s name appears on the vehicle, the operating carrier’s name and USDOT number must follow the words “operated by.” The marking can be painted on or be a removable device, as long as it stays legible.

For the wrap design, that means:

• Reserve a clear space on each door or side panel for the name and USDOT number, on a plain, contrasting background.
• Do not hide the marking in a pattern, across a seam or in a color that blends into the wrap.
• Use the exact name that appears on your registration.
• Check it from 50 feet on a printed mockup or the finished vehicle.

States and some cities can have their own rules for commercial vehicle markings, so check with your state agency as well.

Templates and print-ready files

Wrap designs start from an accurate template of the exact vehicle: make, model, year, wheelbase and roof height. Two vans with the same name can have different panel shapes. Many wrap shops use vehicle template libraries, and then measure the actual vehicle to confirm.

File setup

Ask your wrap shop for their file requirements before you start. Shops commonly ask for:

• designs built at a set scale, such as one-tenth or one-twentieth of full size
• vector logos and text, with fonts converted to outlines
• photos at a resolution that still looks sharp at full size
• extra bleed beyond each panel so the installer has material to trim and wrap around edges
• the correct color mode, with brand colors matched to the shop’s printer and vinyl

Large graphics are viewed from a distance, so the resolution needed at full size is usually lower than for a business card. Ask the shop what they recommend instead of guessing. Our commercial printing guidelines explain how to prepare files for other printed pieces.

Color matching

The same color can look different on a screen, on paper and on printed vinyl. Ask for a printed color sample of your main brand colors on the actual vinyl before the full print run.

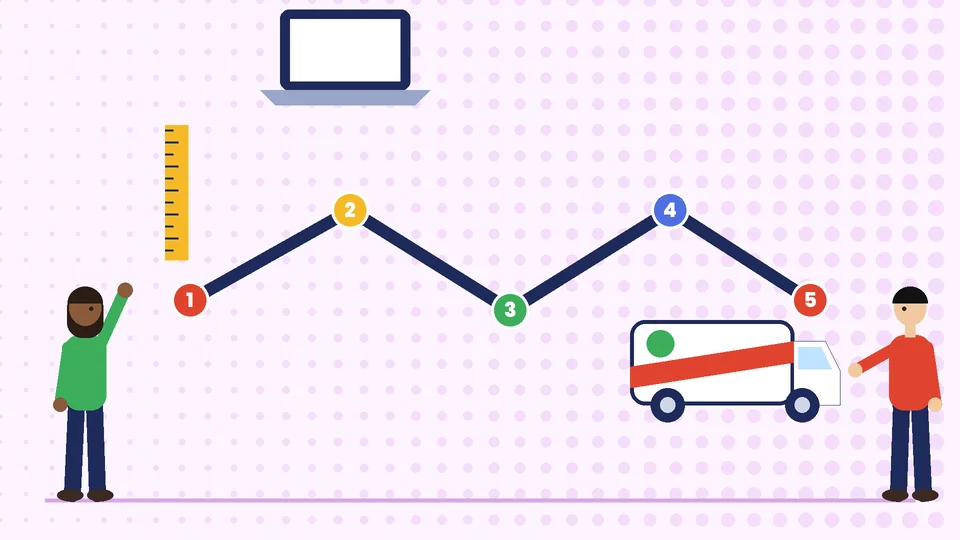

How to design a vehicle wrap, step by step

1. List the vehicles. Record the make, model, year, wheelbase and roof height for each one.
2. Check the required markings. Confirm whether each vehicle needs a company name and USDOT number, and what your state requires.
3. Choose the coverage. Decide on a full wrap, partial wrap or decals for each vehicle based on budget and message.
4. Write the message. Pick the logo, a short line about what you do and one main contact method.
5. Get the template. Use an accurate template for the exact vehicle and measure the real vehicle to confirm.
6. Design each view. Lay out the driver side, passenger side, back, front and roof, avoiding seams, handles and deep curves for important text.
7. Review a mockup. View the design on a vehicle mockup and check readability from a distance.
8. Proof the files and colors. Check spelling, phone numbers and URLs, approve color samples and confirm the file setup with the shop.
9. Install and inspect. Have the vehicle cleaned before installation, then check the finished wrap for bubbles, lifted edges and the required markings.

Wraps as part of your brand

Your vehicles may be seen by more people than your storefront, so they should look like the same business as your website, signs and business cards. If you are refreshing your fleet graphics as part of a larger change, start with your corporate identity and branding so every piece comes from the same rules.

Frequently asked questions

Get help with your vehicle wrap design

A clear vehicle wrap turns every trip and every parked hour into a chance for people to notice your business. If you need vehicle graphics or matching branded materials, contact Pros Inc at 715 J St #200, San Diego, CA 92101, or call (858) 652-8920.
